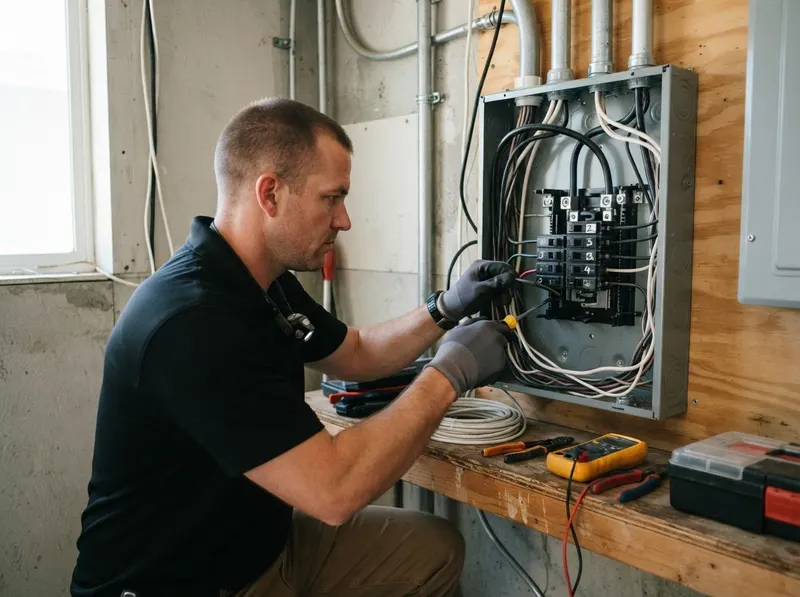

Subpanel Installation los angeles

Subpanel installation resolves circuit congestion in historic properties across Silver Lake, Los Feliz, and Mid-City, where original 100-amp main panels lack physical space for new double-pole breakers. A secondary distribution board does not increase the total electrical utility capacity delivered by the Los Angeles Department of Water and Power (LADWP); instead, it isolates and organizes branch circuits closer to high-consumption zones such as detached garages, modern kitchen suites, or backyard pool pumps. In Mid-Century homes throughout Sherman Oaks and Brentwood, routing a 60-amp to 100-amp subpanel provides dedicated pathways for Level 2 electric vehicle chargers and heat pump heating systems, preventing nuisance trips caused by overloaded general-purpose circuits.

Selecting a subpanel over a primary utility service upgrade depends directly on total calculated ampacity. If the main panel has available capacity, measured via an Article 220 load calculation under the California Electrical Code, a subpanel is the most efficient method to add breaker slots. If total home demand already consumes 80 percent of the main rating, a service panel upgrade to 200 amps must precede or accompany the subpanel addition. For detached accessory dwelling units (ADUs) in Highland Park or garage studios in Venice, code mandates a separate disconnecting means at the outbuilding, separate neutral and ground buses, and dual grounding electrodes driven six feet apart into the soil.

Installing subpanels in coastal microclimates like San Pedro demands NEMA 3R or NEMA 4X weather-rated enclosures to withstand salt spray and marine corrosion, whereas interior utility closets in Westwood and Koreatown accommodate standard NEMA 1 enclosures. Conduits crossing exterior structural walls must maintain clear mechanical clearances under Los Angeles Department of Building and Safety (LADBS) standards: 36 inches of front clearance, 30 inches of width, and clear headroom of 6.5 feet. WireCraft Electrical executes installations using copper conductors sized to mitigate voltage drop over feeder lines extending past 100 feet.
